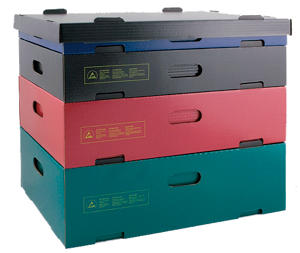

Customer-Store-Container

With moisture-repellent and scratchproof coating on the outside.

Compartment inserts made of dissipative solid board in many compartment sizes. Suitable in TVS, CTR, MB, CSC. Possible without tool costs, and in small quantities!

Multibox

CORTRONIC®
Type Inner dimensions without stacking lug Outer dimensions without stacking lug
03-CSC 362x251x60mm 389x278x67mm
05-CSC 362x251x100mm 389x278x107mm
10-CSC 362x251x139mm 389x278x146mm
15-CSC 362x251x220mm 389x278x227mm
17-CSC 551x362x60mm 578x389x67mm
19-CSC 551x362x100mm 578x389x107mm
20-CSC 551x362x139mm 578x389x146mm
30-CSC 551x362x172mm 578x389x179mm
35-CSC 551x362x220mm 578x389x227mm
36-CSC 550x365x300mm 578x389x307mm
40-CSC 550x365x400mm 578x389x410mm
Customer Store Container slip cover
CORTRONIC®
03-15-CSCD 392x281x30mm 399x299x35mm
17-40-CSCD 581x392x40mm 599x399x45mm

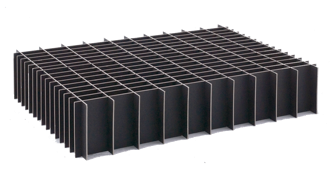

CSC solid board divider inserts, dissipative

For small boxes 03-CSC to 15-CSC. Dividers are available individually and therefore individual compartment sizes possible. Delivered assembled or unassembled.
Type Compartment sizes, complete mm L;B;H max. No. of compartments No. of short dividers No. of long dividers
z.B. 03-CSCK or L Container name is part no. 50;20;60-100-139-220 77 6 10
    No. of slits
Short dividers 249 x 60-100-139-220 10
Long dividers 360 x 60-100-139-220 6

CSC solid board divider inserts, dissipative

For large boxes 17-CSC to 40-CSC. Dividers are available individually and therefore individual compartment sizes possible. Delivered assembled or unassembled.
Type Compartment sizes, complete L;B;H max. no. of compartments No. of short dividers No. of long dividers
z.B. 17-CSCK or L Container name ist part no. 50;20;60-100-139-172-220 160 11 15
    No. of slits
Short divider 360 x 60-100-139--172-220 15
Long divider 549 x 60-100-139-172-220 11













Slip Covers for CSV

Dissipative, pink (electrically conductive, black on request)
Type Dimensions
03-15-CSC 361x250x20mm
17-40-CSC 550x361x20mm

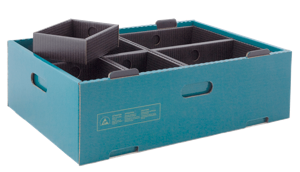

CSC "Box in Box" inserts

For 17-CSC and 19-CSC
CORSTAT™
Type Inner dimensions No. of boxes per container
17-CB1/8 162x119x56mm 8x
17-CB1/4 256x162x56mm 4x
19-CB1/8 163x128x95mm 8x
19-CB1/4 256x163x56mm 4x
