STORAGE AND TRANSPORT PACKAGING FOR ESD"
You are here: Products / ESD / Storage and transport packaging for ESD / Delivery programme / TSC containers with dividers / CTR trays

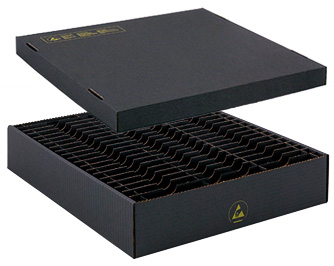

Container with dividers

With moisture-repellent and scratchproof coating on the outside.

Compartment inserts made of dissipative solid board in many compartment sizes, suitable for TVS, CTR, MB, CSC. Possible without tool costs and in small quantities!

CORTRONIC® containers with dividers, with printed warning

Removal of the long dividers offers the opportunity to double compartment widths.
Dissipative dividers. Adhesive tape is necessary for 30-, 40-, 45- and 50-TSC*.
Type Inner dimensions LxBxH mm Compartment size mm No. of Compartments No. of short dividers No. of long dividers
10-TSC 270x169x195 130x24x195 12 1 5
    265x24x195 6   5
15-TSC 372x388x84 109x18x84 60 19 4
    165x18x84 40 19 3
20-TSC 386x386x176 110x30x175 30 4 9
    168x30x175 20 3 9
    340x30x175 10 2 9
    353x30x175 10 2 9
30-TSC 386x386x358 168x35x350 18 8 3
    340x35x350 9 8 2
40-TSC 424x272x281 178x18x280 22 3 10
    365x18x280 11 2 10
    117x22x280 30 16 2
    238x22x280 15 16 2
45-TSC 493x390x166 178x45x166 20 9 3
    360x45x166 10 9 2
48-TSC 562x355x150 123x24x150 44 5 10
    165x24x150 33 4 10
    250x24x150 22 3 10
    515x24x150 11 2 10
50-TSC 562x355x329 123x24x325 44 5 10
    165x24x325 33 4 10
    250x24x325 22 3 10
    515x24x325 11 2 10

Trays

With moisture-repellent and scratchproof coating on the outside.

Compartment inserts made of dissipative solid board in many compartment sizes, suitable for TVS, CTR, MB, CSC. Possible without tool costs and in small quantities!

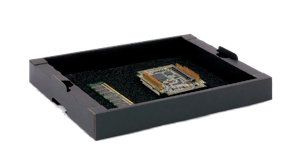

Trays, stackable

CORSTAT™
With or without foam, dissipative or electrically conducting, optionally with plastic reinforcement for stacking lugs, suitable for CSC, TSC, MB
Type Inner dimensions Outer dimensions
05-CTR 297x230x28mm 351x246x31mm
06-CTR 297x230x55mm 351x246x60mm
07-CTR 305x243x40mm 358x259x43mm
20-CTR 499x330x28mm 550x346x31mm
25-CTR 499x330x40mm 550x346x43mm
30-CTR 499x330x70mm 540x346x73mm
Abdeckung aus Vollpappe
20-30-CTR D 593x343mm
Solid board compartments for 20 CTR
Compartment size at least 20 x 20 mm or larger (or on request)

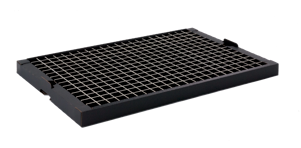

CTR solid board CORSTAT™ compartment inserts

Type Size mm complete (LxBxH) Compartment size mm No. of short dividers No. of long dividers
05-CTR Set 295x228x28 20x21 12 9
20-CTR Set 497x228x28 20x20 21 14
